Product Introduction

Home Product Introduction Positioning System

Positioning System

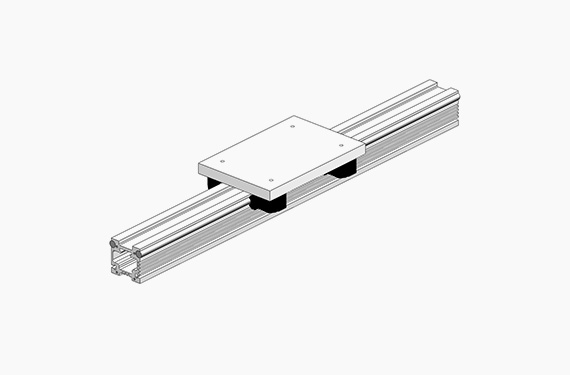

AP POSITION SYSTEM

CATALOG DOWNLOAD

Type Dynamic Force Fz(N) Max Speed(m/s) Max Length(m/m) 2D Cad 3D Cad
AP60 1100 6000
AP80 1700 6000
AP110 2200 6000
AP166 3000 5000

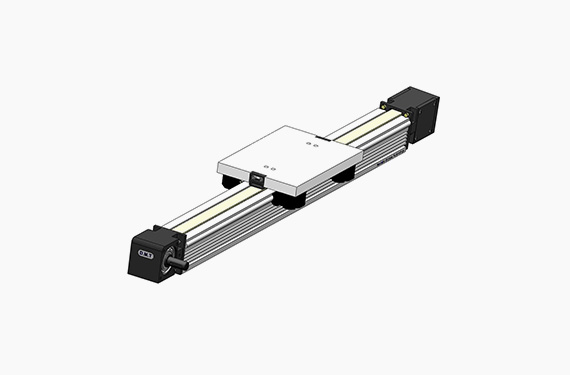

APB-BELT DRIVE POSITION SYSTEM

CATALOG DOWNLOAD

Type Dynamic Force Fz(N) Max Speed(m/s) Max Length(m/m) 2D Cad 3D Cad
AP60B 1100 5 4000
AP80B 1700 6 5000
AP110B 2200 8 5000
AP166B 3000 8 5000

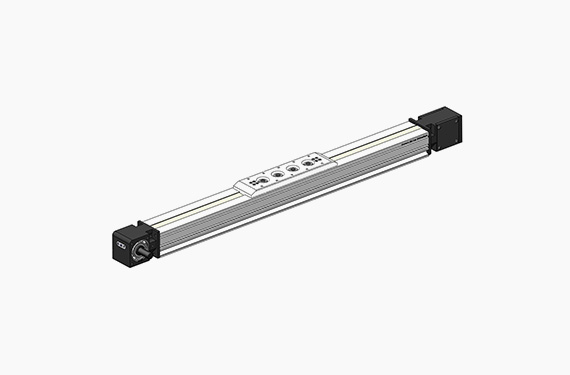

APC BELT DRIVE POSITION SYSTEM

CATALOG DOWNLOAD

Type Dynamic Force Fz(N) Max Speed(m/s) Max Length(m/m) 2D Cad 3D Cad
AP60C 1100 6 4000
AP80C 1500 6 5000

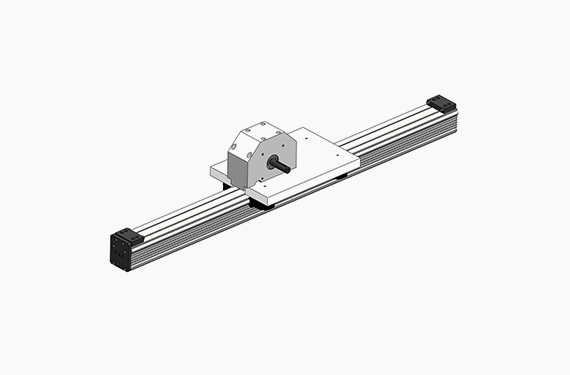

APBZ-UP/DOWN BELT DRIVE POSITION SYSTEM

CATALOG DOWNLOAD

Type Dynamic Force Fz(N) Max Speed(m/s) Max Length(m/m) 2D Cad 3D Cad
AP60BZ 1100 3 4000
AP80BZ 1700 4 5000
AP110BZ 2200 6 5000

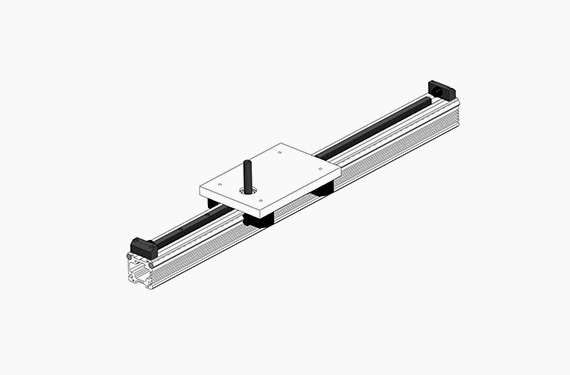

APR.P-RACK & PINION POSITION SYSTEM

CATALOG DOWNLOAD

Type Dynamic Force Fz(N) Max Speed(m/s) Max Length(m/m) 2D Cad 3D Cad
AP80R.P 1700 3 5000
AP110R.P 2000 3 5000
AP166R.P 3000 3 5000
