LINEAR MOTOR – For High-Speed, High-Precision, Long-Distance Transportation

  • High-speed operation, high-precision

– Rated speed: 5m/s
– Maximum speed: 8m/s
– Repeatability: 0.01mm

  • Standard aluminum profile traveling axis module
  • Applicable for orthogonal robots, gantry robots and electronic and semi-conductor lines requiring cleanliness
  • Stators without magnetic power

– Can handle regular industrial environments
– Economical price and secure product competitiveness

  • High-power density, 250% maximum power compared to regular power
  • Low-heat movers with molding structure

6-1_en

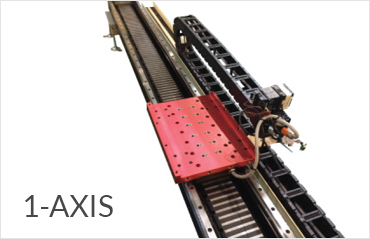

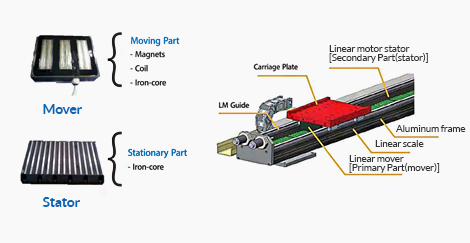

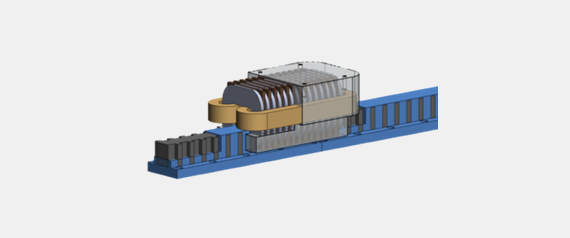

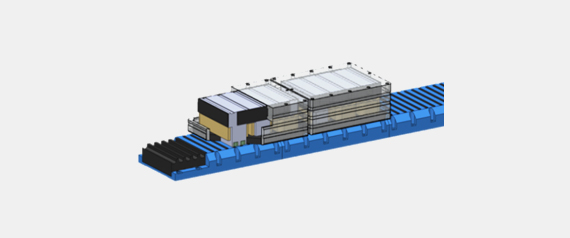

Constitution of the linear motor axis and applicable fields

6-4_en

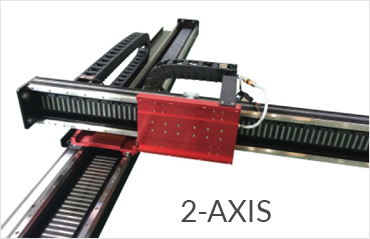

6-3_en

6-4_en

Longitudinal Flux Linear Motor (LF)

LF Standard Specifications LF-N-25-2 LF-N-50-2 LF-N-75-2 LF-N-125-2 LF-N-250-2 LF-N-500-2
Continuous Force N 50 100 150 250 500 1000
Continuous Current Arms 3.5 3.5 3.5 3.5 20 22
Vmax at Frated m/s 6.5 5 6.5 5 5 4
Max Force N 150 300 450 750 1000 1400
Max Current Arms 10.5 10.5 10.5 10.5 50 66
Vmax at Fmax m/s 6 4 6 4 2 2
Repeatability mm 0.005 0.005 0.005 0.005 0.005 0.005
Input voltage V 380V 3∮ (380V 3상)

Transverse Flux Linear Motor

TF Standard Specifications TF-N-500 TF-N-1000 TF-N-2000 TF-N-3000 TF-N-4000
Continuous Force N 500 1000 2000 3000 4000
Continuous Current Arms 20 45 95 95 120
Vmax at Frated m/s 3 3 3 3 3
Max Force N – – – – –
Max Current Arms – – – – –
Vmax at Fmax m/s – – – – –
Repeatability mm 0.01 0.01 0.01 0.01 0.01
Input voltage V 380V 3∮ (380V 3상)

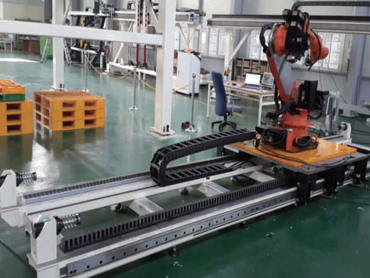

Track Motion

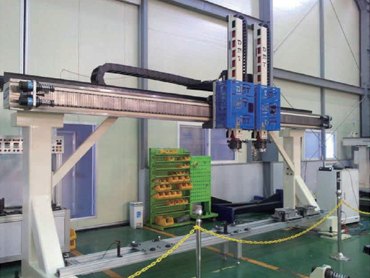

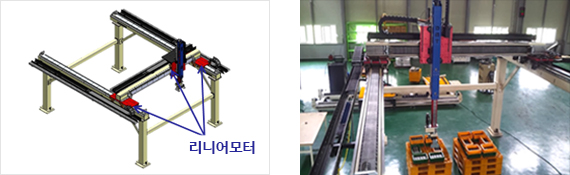

H-Type Gantry Robot

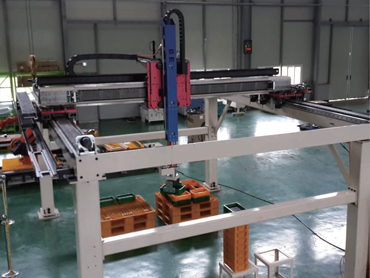

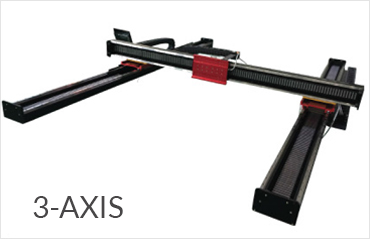

4-Axis Gantry Robot

Develop Bin-Picking Robot System

  • Pick up and align unstructured & structure materials inside pallets (apply 3D/2D visions)
  • Improve processes avoided by workers and raise the line automation rate through developing the bin-picking robot system optimal for sites

Bin-0_en1

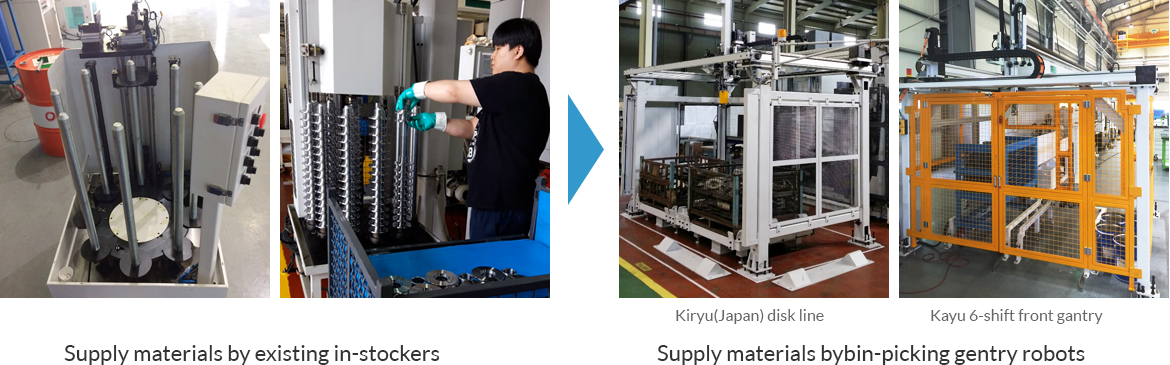

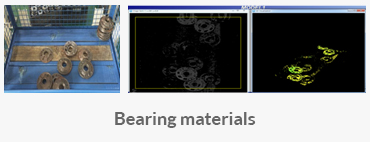

3D-vision recognition of material patterns

Bin-2_en

Bin-3_en

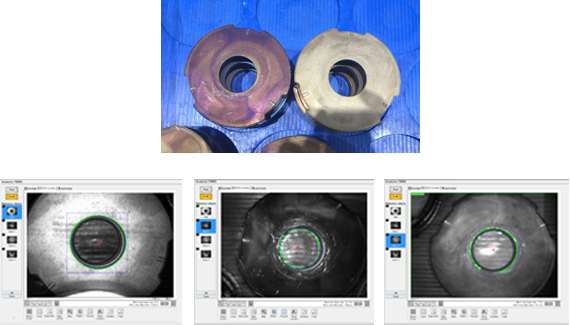

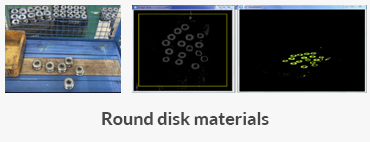

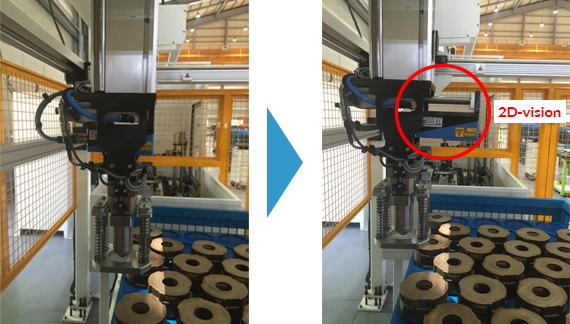

2D-vision recognition of material patterns

Bin-4_en

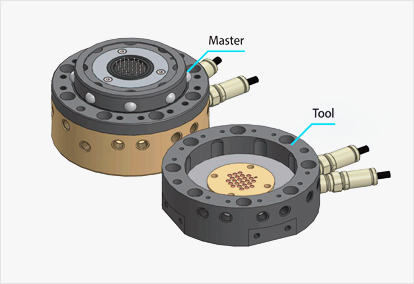

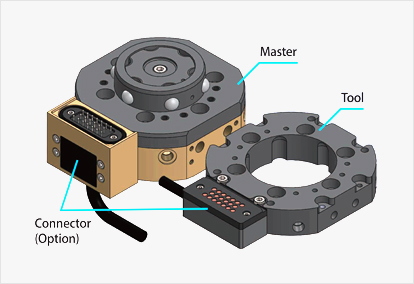

Develop Tool Changer

  • Develop the quick change system for robots handling production of two or more items at the same time
  • Improve the automation rate and productivity through flexible handling at systems for producing a small amount of various items
  • Structured to prevent influx of cutting oil in processing and secure stability and durability in high-speed transportation

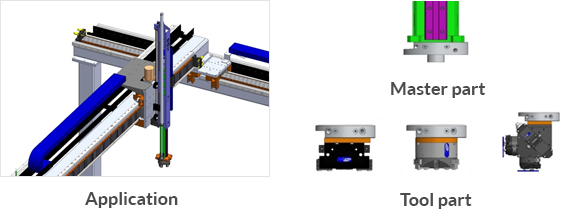

tool-1_en

tool-4_en

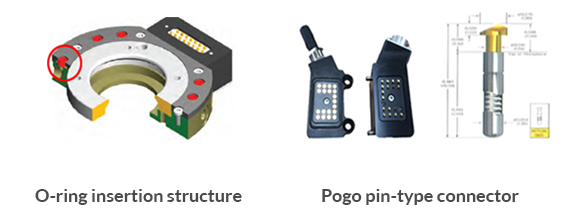

  • Develop the system for inserting o-rings to prevent rings from being separated and prevent cutting oil from leaking , and to cut off air
  • Solve pin bending, a weak point of insert-type connectors, through applying pogo pin-type connectors and difficulties in early setting

DCT-20,DCT-60

DCT-100,DCT-150

Specification

Type Pay load Bending Moment Twisting Moment
DCT20 20kg 150Nm 180Nm
DCT60 60kg 450Nm 500Nm
DCT100 100kg 750Nm 760Nm
DCT150 150kg 1000Nm 1000Nm
Division For Light Load (already developed) For High Load
Base load 20kg Base load60 kg Base load100 kg Base load150 kg
Product
Application Case

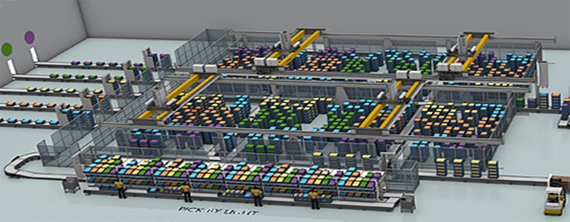

Cases of Applying Large Robots for Automated Warehouses

  • Robot systems designed to manage warehouses for management of the storing and shipping of materials and finished goods
  • Factory total logistics automation system designed to choose materials and manage their storing and shipping in connection with the ERP system

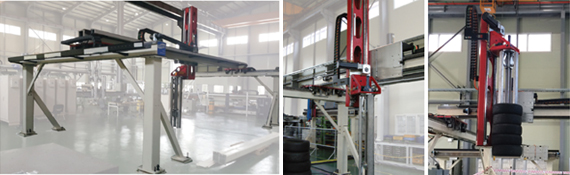

Automated warehouse robots for palletizing the loading and unloading of finished goods

Automated warehouse robots for selecting and loading tires

Loading and unloading, and release layout

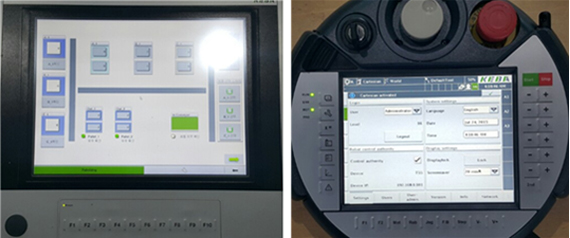

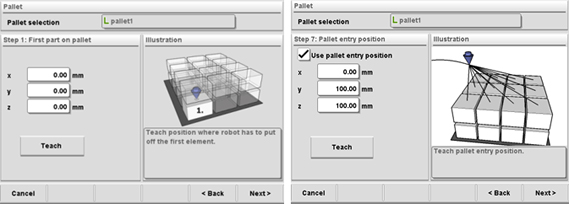

Touch panel and mobile pendant display

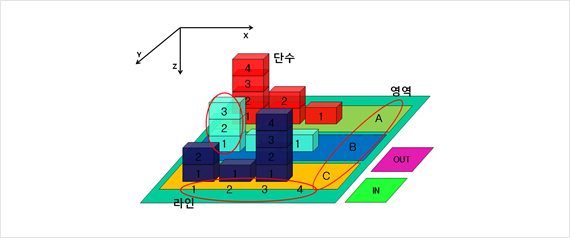

Input size of materials, create loading patterns
  • Develop software algorithm for material loading and unloading (choose materials, choose manual/automatic for the quantity of goods to be loaded or released)
  • Create loading patterns through inputting size of materials

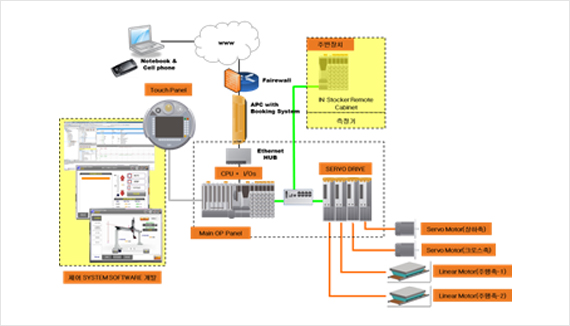

Control system and software

Develop 4-Axis Multi-Joint Robot

  • Can flexibly handle production of a small amount of various items
  • Improve mobility through stockers and integrated structure of multi-joint robots, and enhance productivity and secure competitiveness through developing robots optimal for the attachable loading and unloading process

four-1_en

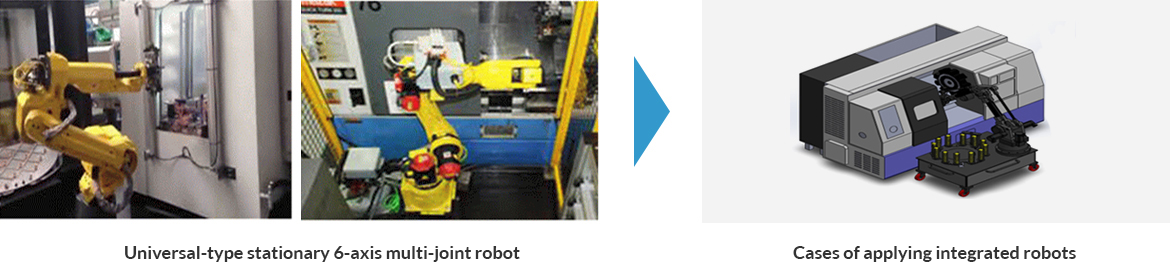

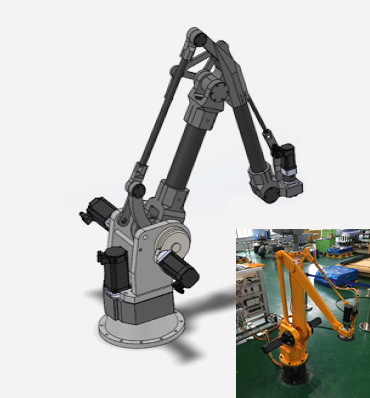

4-axis multi-joint robot

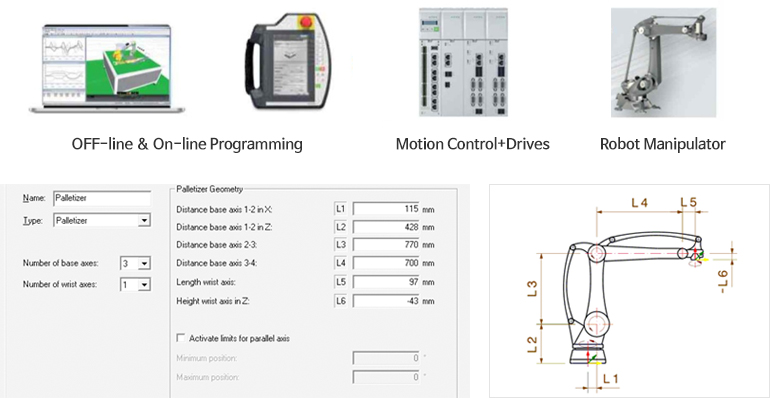

  • Can materialize motions through setting parameters, such as the number of robot axis, length of the arm of each axis, the gear ratio of decelerator, and the rotation speed and acceleration and with simple robot commands
