You can view the best technology and the best products of DM Technology.

Product Introduction

Home Product Introduction Linear Motors

Linear Motors | Longitudinal Flux Linear Motor


Longitudinal Flux Linear Motor, LF

CATALOG DOWNLOAD

Longitudinal Flux Linear Motor

LF Standard Specifications LF-N-25-2 LF-N-50-2 LF-N-75-2 LF-N-125-2 LF-N-250-2 LF-N-500-2
Continuous Force N 50 100 150 250 500 1000
Continuous Current Arms 3.5 3.5 3.5 3.5 20 22
Vmax at Frated m/s 6.5 5 6.5 5 5 4
Max Force N 150 300 450 750 1000 1400
Max Current Arms 10.5 10.5 10.5 10.5 50 66
Vmax at Fmax m/s 6 4 6 4 2 2
Repeatability mm 0.005 0.005 0.005 0.005 0.005 0.005
Input voltage V 380V 3∮ (380V 3상)

Transverse Flux Linear Motor, TF

CATALOG DOWNLOAD

Longitudinal Flux Linear Motor

TF Standard Specifications TF-N-500 TF-N-1000 TF-N-2000 TF-N-3000 TF-N-4000
Continuous Force N 500 1000 2000 3000 4000
Continuous Current Arms 20 45 95 95 120
Vmax at Frated m/s 3 3 3 3 3
Max Force N – – – – –
Max Current Arms – – – – –
Vmax at Fmax m/s – – – – –
Repeatability mm 0.01 0.01 0.01 0.01 0.01
Input voltage V 380V 3∮ (380V 3상)

Features of Linear Motors

Longitudinal Flux Linear Motor

  • Unique brand

– Acquired a unique brand patent for stators without magnetic power
– Provide the best solutions through securing original technology

  • High-speed operation: Maximum 5m/s
  • Respond to the economical prime cost, clean room

– Secure price competitiveness based on structure of stators without permanent magnets, respond to clean-room application with non-contact driving and secure durability

  • Long-distance, high-speed and precise transportation

– This product is well adapted to normal industrial environments because stators have no magnetic power and it is good for high-speed precise long-distance transportation of robot traveling axis.

Constitution of the linear motor axis and applicable fields

Longitudinal Flux Linear Motor

Longitudinal Flux Linear Motor

Longitudinal Flux Linear Motor

Features of Linear Motors

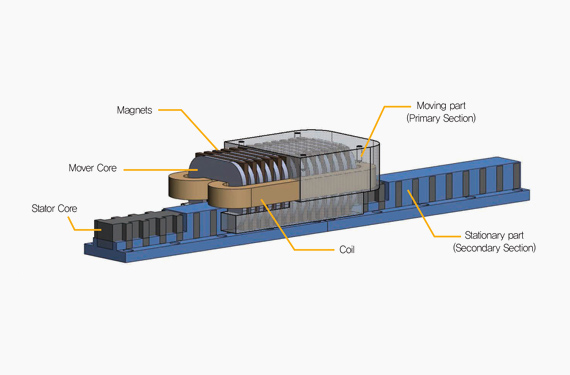

Transverse flux linear motor

  • Permanent magnet-type linear synchronous motors where the flow of magnet and moving direction of the movers cross at a right angle
  • Form

– Mover: Attach a three-phase winding wire and a permanent magnet to the steel core of a mover at the same time
– Stator: Made just with tooth-slot steel cores without magnet power

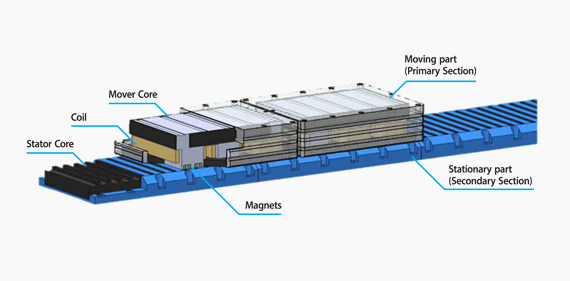

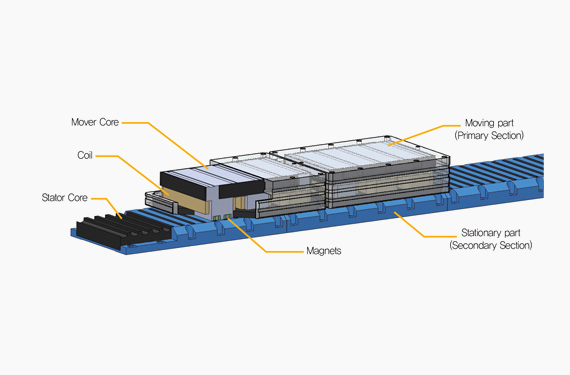

Longitudinal flux linear motor

  • Permanent magnet-type linear synchronous motors where the flow of magnet and moving direction of the movers are parallel
  • Form

– Mover: Attach a three-phase winding wire and a halbach permanent magnet to the steel core of a mover at the same time
– Stator: Made just with tooth-slot steel cores without magnet power

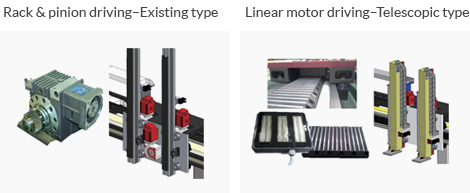

Linear Motor Robot System

Longitudinal Flux Linear Motor

  • Can respond well to normal industrial environments – Secure price competitiveness based on stators without magnetic power
  • Maximum traveling speed: 5m/s. Traveling repeatability: ±0.01 mm
  • The driving aspect requires durability due to high-speed transportation.
  • Linear modules for high-load, high-speed, high-precision and long-distance transportation

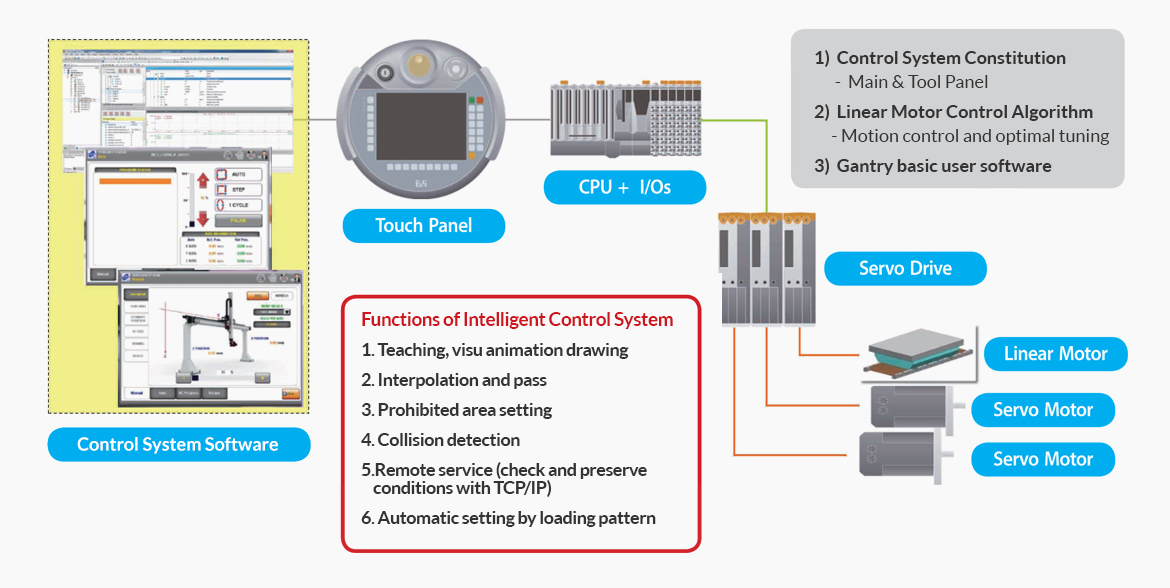

Robot Control System

Longitudinal Flux Linear Motor
