You can view the best technology and the best products of DM Technology.

Product Introduction

Home Product Introduction Heavy Duty Modular

Heavy Duty Modular

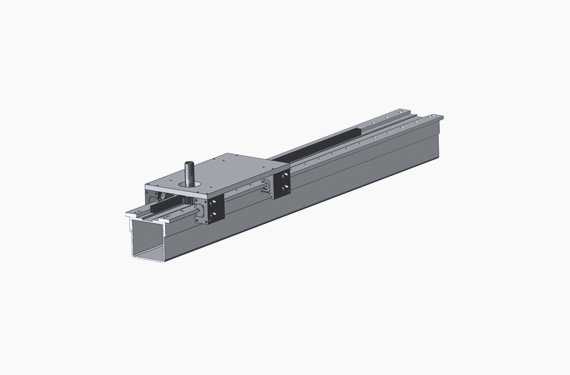

Heavy Duty Modular [H 40/15]

CATALOG DOWNLOAD

Heavy Duty Modular

Type Load Capacity Max. Speed Max. Length Stroke 2D Cad 3D Cad
HM175R 3000N 3M/sec 5M L-860
HM166L 2000N 5M/sec 5M L-860

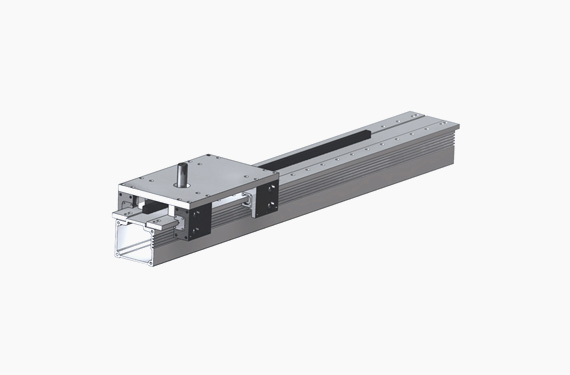

Heavy Duty Modular [H 52/20]

CATALOG DOWNLOAD

Heavy Duty Modular

Type Load Capacity Max. Speed Max. Length Stroke 2D Cad 3D Cad
HM200R 5000N 3M/sec 5M L-900
HM200R 7000N 3M/sec 5M L-900
HM200L 4500N 5M/sec 5M L-900

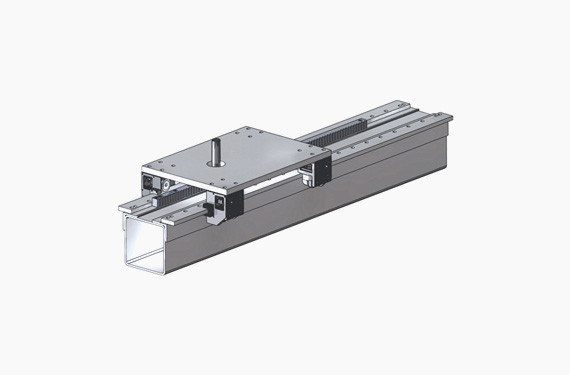

Heavy Duty Modular [H 62/20]

CATALOG DOWNLOAD

Heavy Duty Modular

Type Load Capacity Max. Speed Max. Length Stroke 2D Cad 3D Cad
HM250R 10000N 3M/sec 5M L-900
HM250L 7000N 3M/sec 5M L-1100

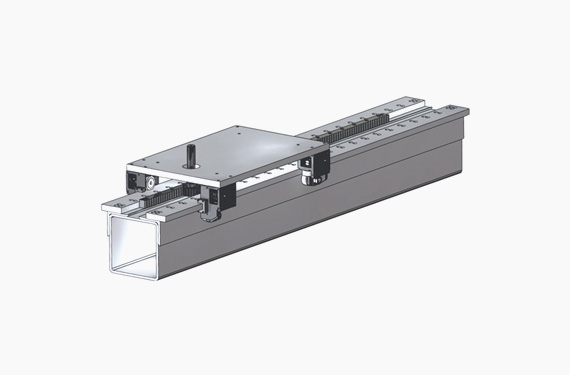

Heavy Duty Modular [H 72/30]

CATALOG DOWNLOAD

Heavy Duty Modular

Type Load Capacity Max. Speed Max. Length Stroke 2D Cad 3D Cad
HM300R 16000N 3M/sec 5M L-1120
HM300L 12000N 5M/sec 5M L-1120
HM380L 14000N 3M/sec 5M L-1120

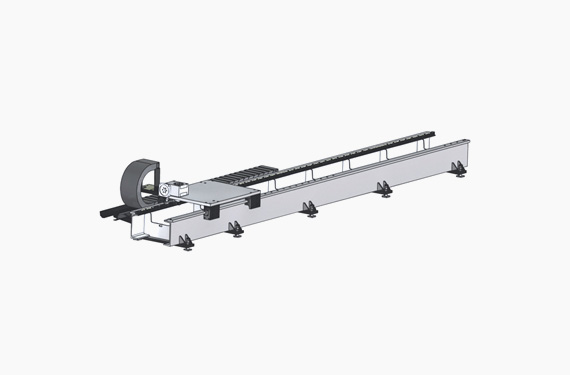

TRACK MOTION TM H 15

CATALOG DOWNLOAD

Heavy Duty Modular

Type Pay Load(Max.) Length(Max.) Speed(Max.) Acceleration Guideway Repeatability 2D Cad 3D Cad
TM H15 R 600kg 50m 90m/min 2m/s FR 1560 ±0.1mm
TM H15 L 300kg 50m 250m/min 2m/s FR 1560 ±0.05mm

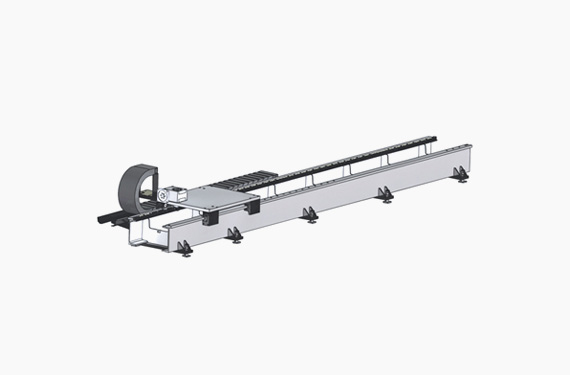

TRACK MOTION TM H 20

CATALOG DOWNLOAD

Heavy Duty Modular

Type Pay Load(Max.) Length(Max.) Speed(Max.) Acceleration Guideway Repeatability 2D Cad 3D Cad
TM H20 R 1200kg 50m 90m/min 2m/s FR 2080 ±0.1mm
TM H20 L 1000kg 50m 150m/min 2m/s FR 2080 ±0.05mm

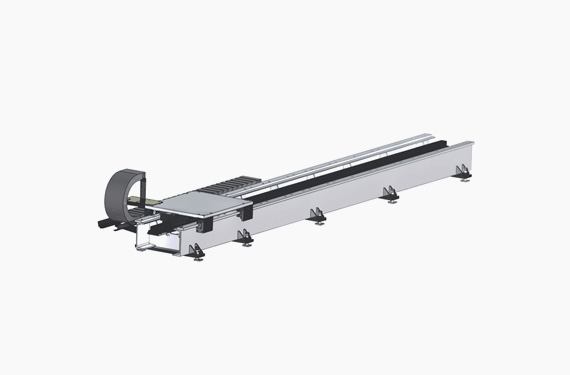

TRACK MOTION TM H 30

CATALOG DOWNLOAD

Heavy Duty Modular

Type Pay Load(Max.) Length(Max.) Speed(Max.) Acceleration Guideway Repeatability 2D Cad 3D Cad
TM H30 R 2000kg 50m 90m/min 2m/s FR 30120 ±0.1mm
TM H30 L 1500kg 50m 150m/min 2m/s FR 30120 ±0.05mm
