Tool Changer

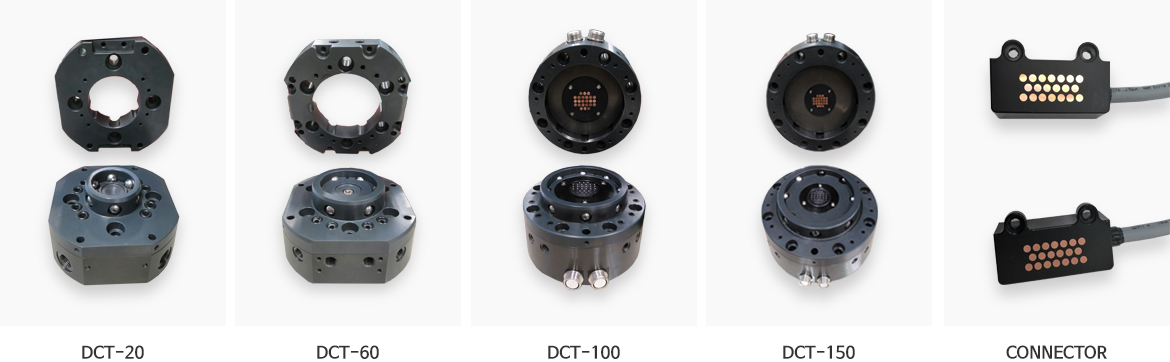

TOOL CHANGER | Tool Changing Connector

Type	Pay load	Repeatability	Product weight		Bending moment	Twisting moment	Fitting size	Operating pressure
Type	Pay load	Repeatability	Master	Tool	Bending moment	Twisting moment	Fitting size	Operating pressure
DCT-20	20kg	±0.02mm	0.6kg	0.4kg	150Nm	180Nm	2×1/8 8×1/8	4~7bar
DCT-60	60kg	±0.02mm	2.6kg	1.3kg	450Nm	500Nm	2×1/8 8×1/8	4~7bar
DCT-100	100kg	±0.02mm	1.9kg	1.9kg	750Nm	160Nm	2×1/8 8×1/8	4~7bar
DCT-150	150kg	±0.02mm	14.5kg	2.2kg	1000Nm	1000Nm	2×1/8 8×1/8	4~7bar

Distinction

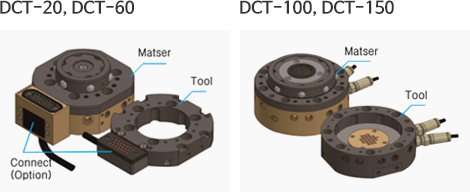

A piston of the master pushes a ball to combine with the tool
Even if air is cut off, the built-in spring prevents the master and tool from becoming disjointed and slipping or dropping.
Applicable for various tools
connector for waterproof

Tool Changing Connector
